Inference Simulation Notes
References
intra-op parallelism is better at low request rates, while inter-op parallelism is more effective at high request rates
- Total latency dominates queueing delay when request rates are low. Intra-op parallelism directly lowers the execution time of each request
- At higher request rates, queue waiting for requests grows and queuing delay becomes dominant. Inter-op parallelism creates a pipeline of model layers which allows system to handle more requests simultaneously
- Network engineers can test different parallelism models
- We are keeping the token length to 512, but we could test a distribution of token lengths for a distribution of request length
For intra-op parallelism, we introduce a speedup coefficient K, where 1 < K < 2, reflecting the imperfect speedup caused by high communication overheads of intra-op parallelism. With the execution time Ds = D K , the average TTFT for 2degree intra-op parallelism is:

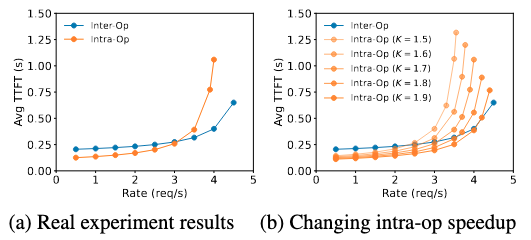

\(Avg\_TTFT_{intra}=\frac{D}{K}+\frac{RD^2}{2K(K-RD)}\) The value of K depends on factors such as the input length, model architecture, communication bandwidth, and placement. As shown in Figure 4(b), a decrease in K notably reduces the efficacy of intra-op parallelism.

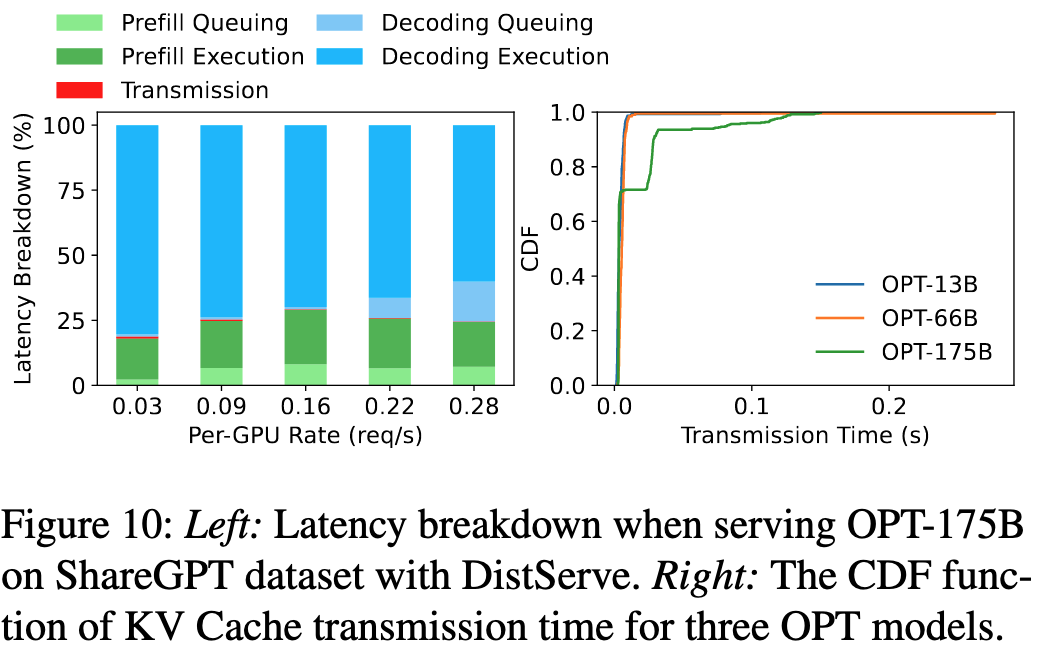

The paper also shows some diagrams that taking advantage of NVLINK’s bandwidth (600GB/s) utilization for KV Cache transfer can make this transfer negligible. Any need to focus on network communication in inference?
